Caloritech™ WXL112 Duct Heaters Designed to Heat Air & (NH) Gases in Process Ducts

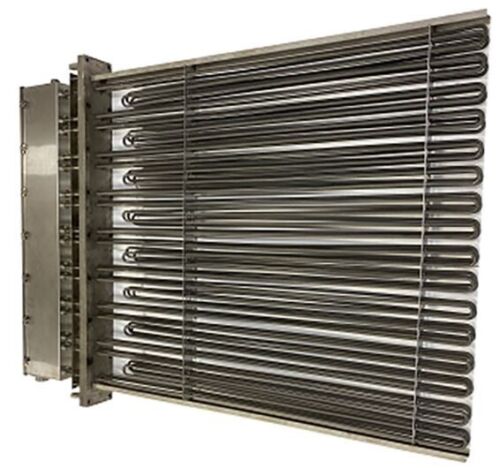

Caloritech™ High-Temperature Industrial Electric Duct Heater

Application

Caloritech™ WXL duct heaters are designed for installation in process ducts to heat air or other non-hazardous gases.

Construction

Standard heaters have replaceable “W” shaped Incoloy® elements. Multiple circuits are selected to limit the line current in each circuit. Type WXL heaters have stainless mounting plates and terminal boxes with a stainless steel element support plate.

Installation

Installation can be in any position; top, bottom or side mounting. The heater is inserted into the duct through a hole and secured with suitable bolts, studs or screws. For heavier units duct work may require reinforcement. In larger ducts, internal duct baffles may be required to ensure that the minimum air velocity passes over the elements. All process duct heater installations must include a device such as a thermocouple control or a proximity high limit cutout to limit the outlet temperature in the event of fan failure or malfunction of the process temperature regulator. WXL heaters are suitable for outlet air temperatures up to 1112°F (600°C) providing the air velocity is not less than the minimum required velocity.

Standard Features

• 304 Stainless steel mounting plate and frame construction
• Stainless steel NEMA 4X Terminal Box
• Incoloy heating elements
• Lifting lug provided
• The wiring connection block provided
• High temperature wire leads
• Integral anti-condensation heater
• Built-in K-Type thermocouple for overtemperature protection when used with suitable temperature controller (on some models only – please specify)
• 1.5” NPT & 0.75” NPT conduit hubs provided

Special Features

Type WXL heaters are available in other sizes and ratings. Units can be supplied with duct section, fan assembly and control panel, if needed. Consult factory for additional information.
