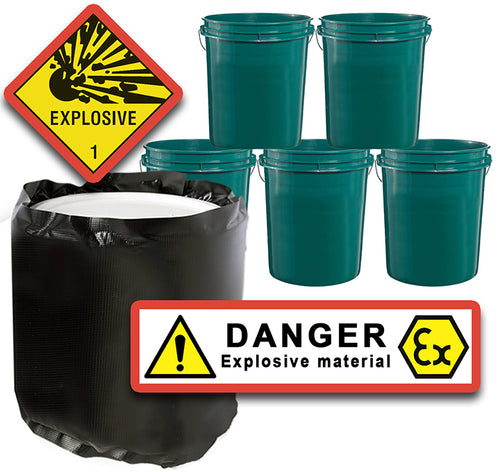

5 Gallon Explosion-Proof Pail/Drum/Barrel Heater - C1D2 (120V)

Explosion-proof 5 Gallon Drum / Barrel Heater - Certified by ETL to UL, CE, CSA Safety Standards for Class 1 Division 2 areas. Safely heat hazardous materials.

CBBH05-C1D2T4 - Custom 5 Gallon Drum / Barrel Heater Certified for a Class 1 Division 2 Hazardous location. Our hazardous location products are listed for use in Class 1 Division 2; Groups A, B, C & D Hazardous Environments with a maximum Temperature Classification of T4. Our proposed heated solution is intended for a 55 gallon drum w/ container dimensions of 11.8"D x 15.6"H

Power Density: Extreme Freeze Protection -40°F

External Cord Length: 33 ft (can be shortened upon request)

Temperature Control: ALL heaters have a fixed internal thermostat and we can set that temperature anywhere between 60° F and 145° F (15°C - 63°C). If higher temperatures are required, please contact us for a custom quote.

Vinyl Type: CA16 Gray Alloy Vinyl (cold-crack rated to -20°F)

Approximate Wattage: 120 Watts

Voltage: 120V

Certified by ETL to UL, CE, CSA Safety Standards

This item includes: Buckles & straps used for fastening the custom heated drum blanket... providing optimal thermal contact and increased performance.

Temperature Classification:

This classification identifies the minimum ignition temperature threshold for the hazardous area. In other words, in order for the explosive or combustible environment to ignite, it would need to be subjected to a temperature in excess of this value. The values applied to this classification run from T1 to T6. A classification of T4 means the minimum ignition temperature is >135° C [275° F].
